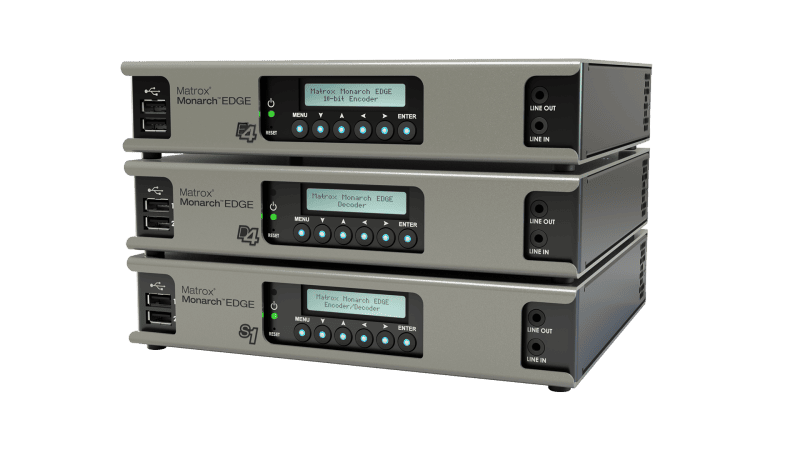

4K/HD Encoder
Thông số kỹ thuật
- Video Input:
- 1x 12G SDI input per ST 2082
- 3x 3G SDI inputs per ST 425
- UHD support using 4 SDI inputs per SMPTE ST 425-5
- 2x SFP 28 network ports
- Resolutions:
- 2160p at 50, 59.94, 60 fps
- 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- 1080i at 25, 29.97, 30 fps
- 720p at 50, 59.94, 60 fps
- Genlock: Bi-level
- VANC ancillary data processing:
- Closed captioning (CC) embedded in VANC processing as CEA-608/708
- Vertical interval timecode (RP-188)
- HDR and colorimetry metadata
- Audio Input:
Digital:
16x channels of embedded SDI audio is supported per input, and 8x channels of audio support per encode using SRT or MPEG2 TS.
Analog:
2x channels of balanced analog audio input via XLR connector*
Line Level
*Available via optional audio cable
- Confidence Preview: 1x DisplayPort 1.1 (Maximum resolution: 1920x1080)
- Color Space and Chroma Sub-Sampling: 4:2:0 (8-bit and 10-bit); 4:2:2 (8-bit and 10-bit)
- Frame Synchronization
- Video Scaling: High Quality multi-tap 10 bit Up/Down Scaler and De-Interlacer
- Audio Sampling Frequency: 48 kHz when digitized from analog source
- Audio Bitrates: Range from 32 kbps to 256 kbps
- Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)
- Encoding Profiles: Up to High 4:2:2 profile (Hi422P)
- Encoder Bitrates Range: Video: Up to 120 Mbps
- Streaming Protocols: MPEG-2 TS over UDP (unicast or multicast); RTP/RTSP; Native RTP* (unicast or multicast); SRT (Caller, Listener and Rendez-Vous modes); RTMP (encoder only)
- Additional Features:
8x tally signals (sent to cameras-encoder)
Tally ports available via a 15-pin D-SUB connector*
* This feature is offered via a 15 Position Pin D-Sub Standard Connector. With the help of a Pinout diagram, a cable can be assembled to interface to any tally output interface on the vision mixer.
Tài liệu kỹ thuật:https://www.matrox.com/sites/default/files/monarch_edge_remote_production_datasheet_2021.pdf
Sơ đồ đấu nối:

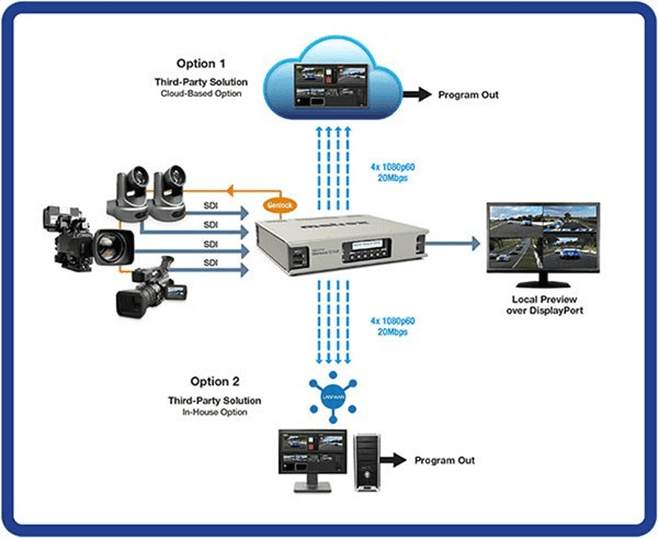

Public/Private Cloud-based Remote Production
.png)

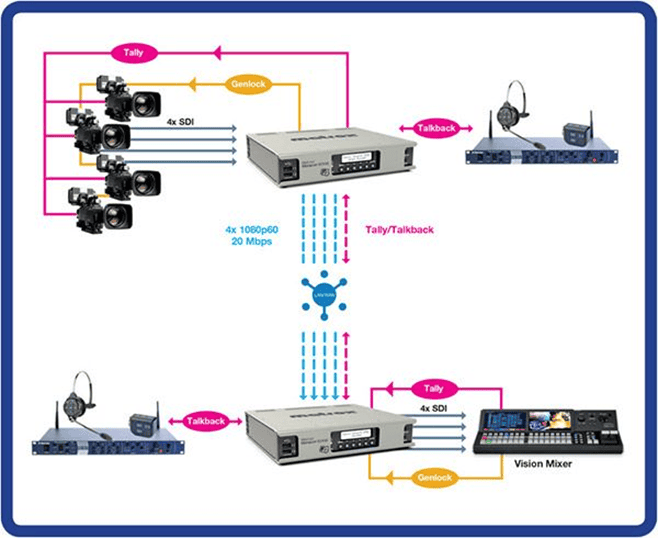

Remote Integration (REMI) Production Encoding & Decoding
.png)
