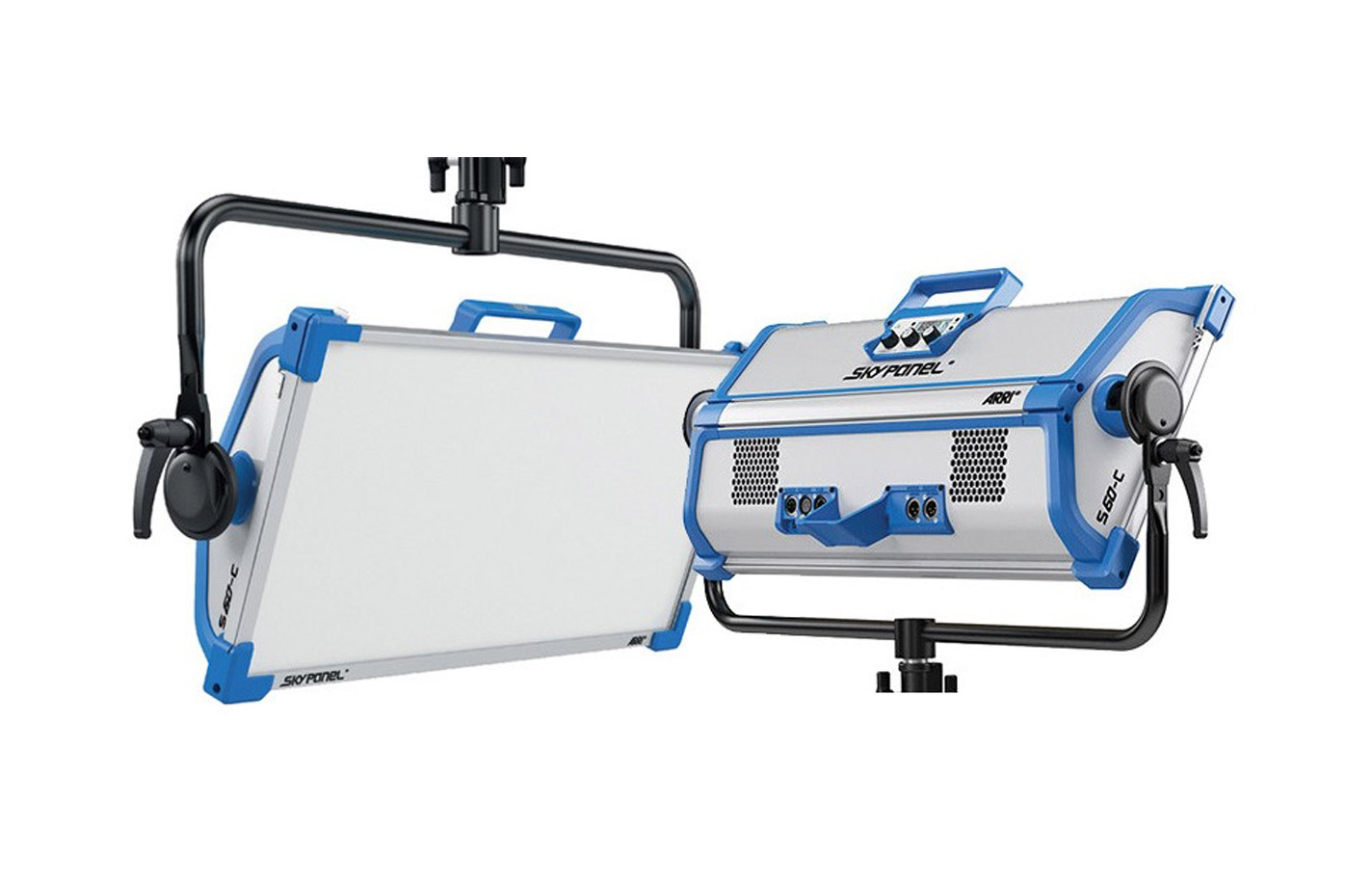

Đèn LED Arri SkyPanel S60-C
ĐÈN LED ARRI SKYPANEL S60-C

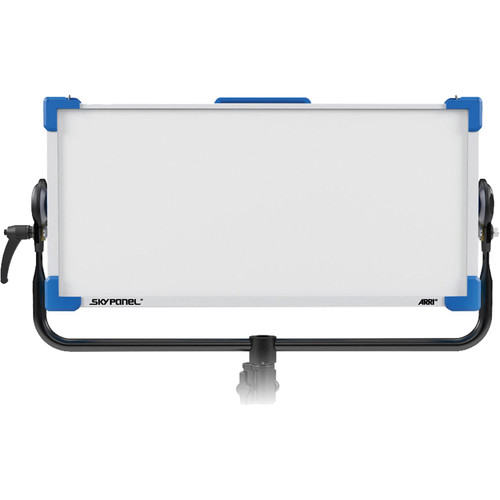

SkyPanel S60-C LED Softlight được hỗ trợ bởi một thanh thép, diện tích bề mặt bảng điều khiển có kích thước 25,4 x 11,8 ". Và sử dụng các bộ khuếch tán nhựa nhiệt dẻo có thể hoán đổi cho nhau từ Lite đến Heavy để làm dịu ánh sáng và quấn đầu ra của nó xung quanh chủ thể. SkyPort phát ra tương đương với đèn mềm vonfram 2000W trong khi vẽ tối đa chỉ 450W.
Chi tiết sản phẩm tham khảo tại Video sau:
Bảng Thông số kỹ thuật đèn LED SkyPanel S60-C
Series | SkyPanel |
Model | S60-C |
Optical System | Soft Diffusion Panel |
Light Aperture / Lens Diameter in mm | 645 x 300 mm |
Light Aperture / Lens Diameter in inch | 25.4 x 11.8" |
Beam Angle | 105° (Half Peak Angle) |
Weight in kg net | Manual Version: approx. 13 kg |
Weight in kg packed | Manual Version: approx. 21 kg |
Weight in lbs. net | Manual Version: approx. 27.8 lbs |
Weight in lbs. Packed | Manual Version: approx. 46 lbs |
Measurements (HxWxL) incl. Pin in mm | Manual Version: 566 x 826 x 133 mm |
Measurements (HxWxL) excl. Pin in mm | Manual Version: 433 x 826 x 133 mm |
Measurements (HxWxL) incl. Pin in inch | Manual Version: 22.3 x 32.5 x 5.2" |
Measurements (HxWxL) excl. Pin in inch | Manual Version: 17.0 x 32.5 x 5.2" |
Measurements (HxWxL) Packed size in mm | 470 x 860 x 300 mm |
Measurements (HxWxL) Packed size in inch | 18.5 x 33.9 x 11.8" |
Handling | Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt |
Mounting | 28 mm Spigot (Junior Pin) |
Tilt Angle | +/- 90° |
Lamphead Voltage Input | 48 V DC |
Power Consumption | 400 W Maximum |
Lamphead Power Connection | Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive) |
Battery Connector | Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) |
Battery DC Voltage Range | 23 to 36 V DC |
Battery Mode Light Output | 50 % of total output |
White Light | 2,800 K to 10,000 K continuously variable correlated color temperature |
Colored Light | Full RGB+W Color Gamut with Hue and Saturation Control |
Color Temperature Tolerance | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
Color Rendition | CRI Average > 95, TLCI Average > 90 |
Green-Magenta Adjustment | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
Dimming | 0 to 100 % continuous |
Control | On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net |
Wireless Control | Not integrated, via SkyLink |
Remote Device Management (RDM) | DMX Setup, Hour Counter and Standard RDM Commands |
Software / Mini-USB Interface | Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive |
Housing Color | Blue/Silver, Black |
Ambient Temperature Operation | -20 to +45° C (-4 to +113° F) |
Protection Class / IP Rating | III / IP20 |
Estimated LED Lifetime (L70) | 50,000 hours |
Estimated Color Shift Over Lifetime (CCT) | +/- 5 % |
Certifications | CE, CB, ENEC, cNRTLus, FCC, PSE |
Power Supply Unit | S60/S120 PSU |
Power Supply Input Range | 100 to 240 V ~, 50/60 Hz |
Power Supply Output Range | 48 V DC |
Power Input Connection | powerCON TRUE1 (Bare Ends / Schuko / Edison) |
Power Output Connection | Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through) |
Weight in kg | approx. 4 kg |
Weight in lbs | approx. 7.7 lbs |
Measurements (HxWxL) in mm | 91 x 191 x 383 mm |
Measurements (HxWxL) in inch | 3.6 x 7.5 x 15.1" |
Control | On-Board On/Off Switch |
Mouting | SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter |
Certifications | CE, CB, ENEC, cNRTLus, PSE |
